Electronically Metal Drill Machine Infinitely Variable Drive With Mt2 Spindle Taper

Name: Electronically Metal Drill Machine Infinitely Variable Drive With Mt2 Spindle Taper
Brand: QIANGLI
Price: 1 USD

Wholesale Electronically Metal Drill Machine Infinitely Variable Drive With Mt2 Spindle Taper from china suppliers

Delivery Time : 30days

Max. Drilling Capacity : 20 mm

Max. Face Milling Capacity : 65 mm

Max. End Milling Capacity : 20 mm

Spindle Taper : Mt2

Connection Voltage : Single Phase 230V & 110V

Main Motor : 850W Powerful Motor

Gear Speeds : Electrically Adjustable Speed

HS Code : 8459590000

Place of Origin : CHINA

Brand Name : QIANGLI

Certification : ISO CE

MOQ : 1 SET

Price : Negotiable

Packaging Details : Export Packaging

Payment Terms : T/T

Contact Now

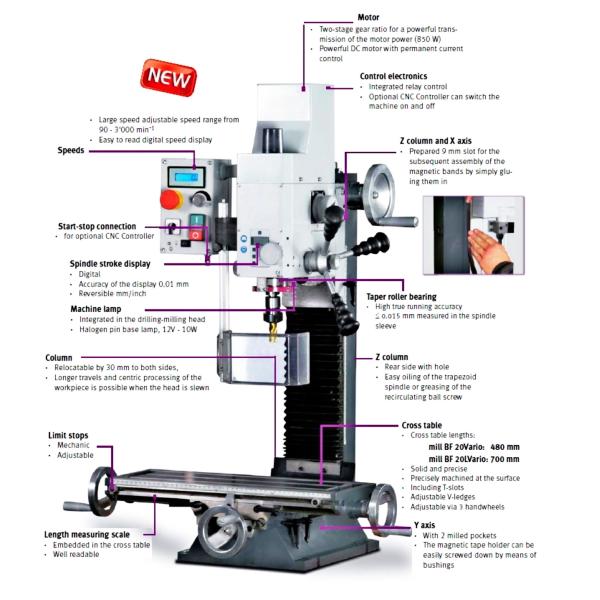

Electronically Infinitely Variable Drive Metal Drilling & Milling Machine With Mt2 Spindle Taper

Main Feature :
Convincing Arguments : Quality, Efficiency and Price

Longer Cross Table (700 X 180 mm)
Feed spindles can be adjusted without clearance due to adjustable spindle nuts
Stable dovetail guiding precision ground and scraped with readjustable V-ledges without clearance
EMC filter (to protect sensitive electronics for override mains-borne signals)
All guideways are ground and sight scrapped (oil pockets for greasing)
Precisely manufactured
Two-row angular contact bearings in the axis, can be adjusted free of play
Safety electrical system of 24 volts type
Bellow as guide protection
Right-/ Left handed rotation
Drilling milling head tiltable by ± 90 for milling and drilling works at different angles
Height-adjustable protective screen with micro switch providing maximum protection of the user against chips and parts flying off at high speed
Certificate of Original (CO, FORM A, FORM E, FORM F )
Two-stage gear pair for a powerful conduction of the motor power
D.C. Powertful motor with permanent speed monitoring
Spindle sleeve feed via stargrip (drilling)
Fine crossfeed of spindle sleeve when milling
Digital sleeve travel indicator, precision of reading 0.01 mm
Automatic off-switch (IP 54 compliant) for easy operation, with voltage circuit breaker
Solid and precise dovetail slideway, adjustable without clearance V-ledge
Right left hand rotation
Expansion bellows for expansion bellows protection
Easy and clear operation due to individually adjustable control panel
Every travel is readable by graduation
Integrated Machine lamp
Connecting voltage is Single Phase 230V or 110V
Electronic infinitely variable driving gear

Electronically Metal Drill Machine Infinitely Variable Drive With Mt2 Spindle Taper

Technical Data :

Product Name:	Variable Speed 850W Metal Drilling Milling Machine - Longer Cross Table -Max Drilling Capacity Ø 20 mm -850W powerful motor -Spindle Fine Feed -Digital Speed Readout
Product Item:	MM-BF20L Vario
Drilling-Milling Capacity
Max. Drilling Capacity :	Ø 20 mm
Max. Face Milling Capacity :	Ø 65 mm
Max. End Milling Capacity :	Ø 20 mm
Spindle Seat
Spindle Stroke :	50 mm
Spindle Taper :	MT 2 / M10
Throat ( Working Range ) :	185 mm
Drilling-milling head
Swivel Range :	± 90°
Spindle Speeds :	90-1480 min / 150-3000 min
Gear Speeds :	2 steps, electrically adjustable speed
Cross table
Table Length :	700 mm
Table Width :	180 mm
T-Slot size / distance :	12 mm / 63 mm
Load of cross table max. :	55 KGS
Travels
Travel X-Axis :	480 mm
Travel Y-Axis :	175 mm
Travel Z-Axis :	380 mm
Electrical connection
Connecting Voltage :	Single Phase 230V or 110V
Connecting Frequency :	50HZ or 60HZ
Motor Power :	850W Powerful Motor
Net Weight :	115 KGS
Gross Weight :	145 KGS
Packing Size :	950 X 565 X 935 mm
Standard Accessory :	Digital Speed Readout Morse Taper Drill Chuck Halogen Lamp Draw-in Rod M10 Tools and Toolbox

We are the professional OEM manufacturer vendor for many Germany famous Machine Companies for more than 20 years, as a result, we have both of the good technical background and full experience, all your requirement would get the trustable support & solutions from us in time, moreover, we have full sincerity to support all your requirement.

Welcome you to send enquiry to us
