CNC Steel Drilling Machine , Flange Drilling Machine With Linear Rolling Guide

Product Categories

Jiangsu Qiangli Machinery Co.,Ltd

Contact Now

Name: CNC Steel Drilling Machine Flange Drilling Machine With Linear Rolling Guide
Brand: QIANGLI
Price: 1 USD

Place of Origin : CHINA

Power : 15KW

Voltage : Customized

Spindle Motor Power : 5.5kw

Working Size : 1000mm*1000mm

Dimension(L*W*H) : 3300*2200*1800mm

Positioning Accuracy : ±0.05/300 mm

Brand Name : QIANGLI

Certification : ISO CE

MOQ : 1 SET

Price : Negotiable

Packaging Details : Export Packaging

Payment Terms : T/T

Contact Now

CNC Metal Drilling Machinery Steel Flange Drilling Milling Machine Guided By Linear Rolling Guide

Specification

Vertical Drilling Head	Quantity	1
	Spindle Taper	BT40
	Drilling Diameter (mm) Tapping Diameter(mm)	Φ1-Φ40(twist drills and U drills) M3-M16
	Spindle Speed (r/min)	30-3000
	Spindle Motor Power (kw)	5.5
	Spindle Nose To Table Distance	200-600(±30mm)
Gantry Longitudinal Movement (X-axis)	Max. Stroke (mm)	1000
	Moving Speed (m / min)	0-9
	Servo Motor Power (kw)	2.4* 1
	Drive mode	Guided by linear rolling guide; driven by servo motor and ball screw.
Power Head Lateral Movement (Y Axis)	Max. Stroke (mm)	1000
	Moving Speed (m/min)	0-9
	Servo Motor Power (kw)	2.4*1
	Drive mode	Guided by linear rolling guide; driven by servo motor and ball screw .
Vertical Ram Feed Movement (Z-axis)	Max. Stroke (mm)	370
	Moving Speed (m/min)	0-8
	Servo Motor Power (kw)	1x2.4( Brake motor)

CNC Steel Drilling Machine , Flange Drilling Machine With Linear Rolling Guide

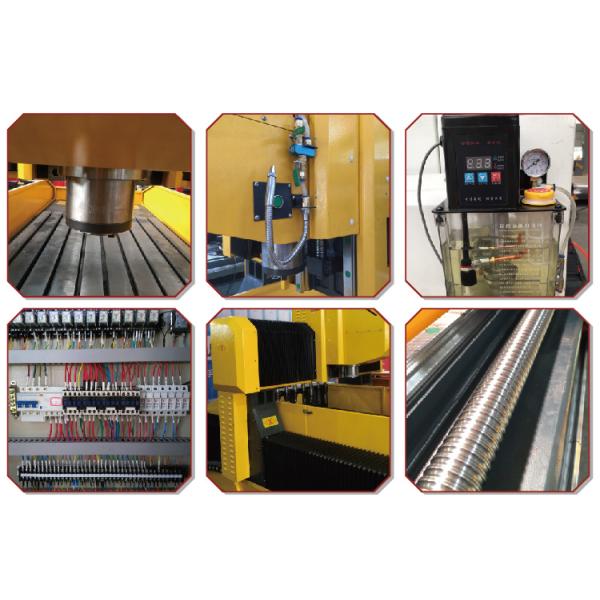

Gantry structure and three-axis linkage ensure the machine stably running and high-precision positioning.
Total heat treated.
The grinding T-slot on worktable clamp work-pieces conveniently.
For equipped with digital high-speed hand wheel, the operation is more convenient and quick. With preview and review function.
Spindle of power head adopts high speed and high precision spindle, to realize steeples speed control as required by synchronous belt driving.
All three axis adopt high quality servo motor and precise ball screw to drive.
Special cooling liquid supply, recovery and recycle system.
Equipped with automatic lubricating device to reduce each motion vice friction and maintain the machine conveniently.

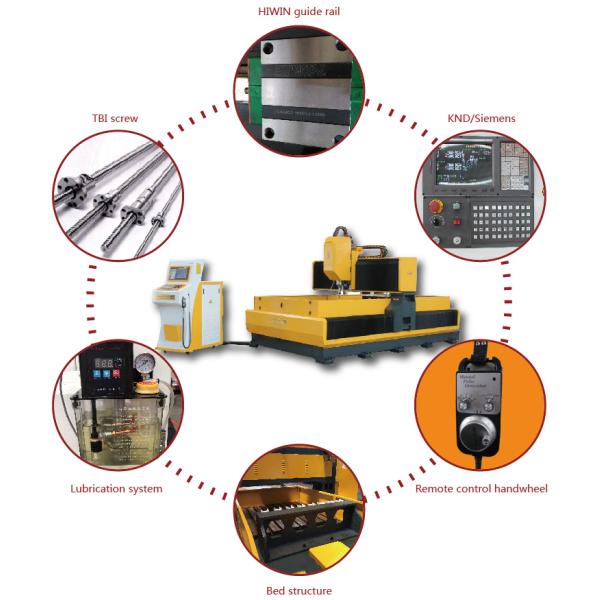

Main parts all adopt high-quality products from well-known manufacturers, such as Hiwin, Siemens, Omron, Kawaichi, etc. in order to ensure the reliability of machine tool, and can be changed according to the demand of users.

CNC Steel Drilling Machine , Flange Drilling Machine With Linear Rolling Guide
