Rapid Up Down Hydraulic Surface Grinding Machine , Flat Grinding Machine

Name: Rapid Up Down Hydraulic Surface Grinding Machine Flat Grinding Machine
Brand: QIANGLI
Price: 1 USD

Wholesale Rapid Up Down Hydraulic Surface Grinding Machine , Flat Grinding Machine from china suppliers

Delivery Time : 20days

Worktable size : 750X300mm

Max. travel of table : 780X320mm

The grinding wheel size : dia.300X30X dia.76.2mm

Specification : 2000x1640x2020MM

HS Code : 8460199000

Place of Origin : CHINA

Brand Name : QIANGLI

Certification : ISO CE

MOQ : 1 SET

Price : Negotiable

Packaging Details : Export Packaging

Payment Terms : T/T

Contact Now

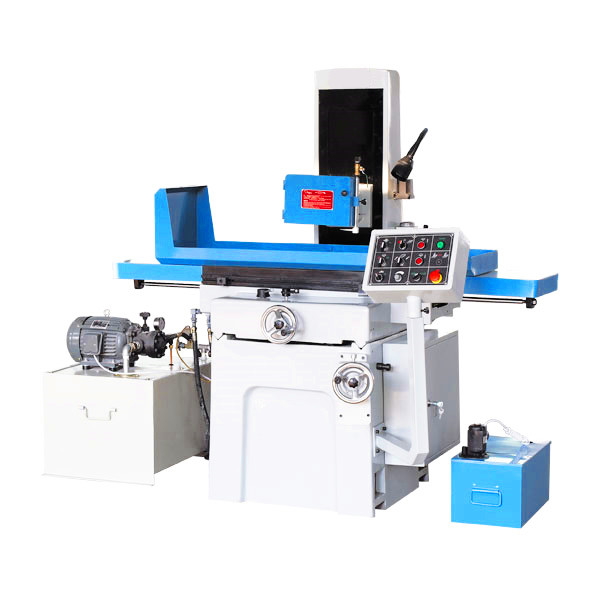

Hydraulic Surface Grinding Machine Rapid up-Down Hydraulic Flat Grinder MY1230

The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. The transverse motion of the working table can be used to realize the mechanical transmission and the manual transmission.
3. The longitudinal movement of the working table can achieve mechanical drive and manual drive.
4. Can grinding a variety of flat and complex shape, suitable for grinding without motorized feed, according to the user needs to be equipped with permanent magnetic sucker or electromagnetic sucker.

Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Main Technical Parameters:

Specifications								Units	MY1230
workbench	Worktable size (L * W)							mm	750×300
	Max. travel of table							mm	780×320
	Table T slot (slot number x slot width)							mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)							mm	Φ300×30×Φ76.2
	Distance spindle center line to working table							mm	520
	Grinding wheel speed						50HZ	r/min	1450
							60HZ	r/min	1680
The amount of feed	Table longitudinal (left and right) speed							m/min	3-20
	ransverse (front and rear) feed handwheel feed			Continuous (stepless)				mm/min	600
				Intermittent (stepless)				mm/times	0-6
				Handwheel per turn				mm	4.0
				Handwheel per lattice				mm	0.02
	The vertical (up and down) feed handwheel feed					Handwheel per turn		mm	2.0
						Handwheel per lattice		mm	0.01
	Grinding head up and down is fast lifting speed (approximate value)							mm/min	360
Hydraulic system	Hydraulic motor							kw	2.2
	working pressure							Mpa	4
	Fuel tank capacity							L	100
	Maximum flow rate							L/min	20
Motor power			Spindle motor					kw	2.2
			Cooling motor					W	40
			Elevator motor					W	120
working accuracy		he process surface of the base level of the parallel degree						mm	300:0.005
		Surface roughness						μm	Ra0.32
Machine weight					Net weight			kg	1400
					Gross weight			kg	1530
External size (L * w * h)								mm	1960×1480×1850
Packing size (L * w * h)								mm	2000×1640×2020

Rapid Up Down Hydraulic Surface Grinding Machine , Flat Grinding Machine

Packaging & Delivery

Packaging Details	plywood box for hydraulic automatic surface grinder
Delivery Time	Shipped in 15 days after payment
